1. Basic Structure and Structural Architecture of Quartz Ceramics
1.1 Crystalline vs. Fused Silica: Specifying the Product Class
(Transparent Ceramics)
Quartz porcelains, also known as fused quartz or integrated silica porcelains, are sophisticated inorganic materials derived from high-purity crystalline quartz (SiO ₂) that undertake regulated melting and combination to form a dense, non-crystalline (amorphous) or partially crystalline ceramic framework.
Unlike conventional porcelains such as alumina or zirconia, which are polycrystalline and made up of numerous phases, quartz porcelains are mainly composed of silicon dioxide in a network of tetrahedrally worked with SiO four systems, using phenomenal chemical purity– typically going beyond 99.9% SiO TWO.
The distinction between integrated quartz and quartz ceramics depends on processing: while fused quartz is normally a totally amorphous glass formed by rapid air conditioning of liquified silica, quartz porcelains may involve controlled condensation (devitrification) or sintering of great quartz powders to attain a fine-grained polycrystalline or glass-ceramic microstructure with improved mechanical toughness.
This hybrid strategy combines the thermal and chemical stability of merged silica with boosted fracture durability and dimensional stability under mechanical load.
1.2 Thermal and Chemical Security Mechanisms
The extraordinary performance of quartz porcelains in extreme atmospheres stems from the strong covalent Si– O bonds that develop a three-dimensional connect with high bond energy (~ 452 kJ/mol), providing amazing resistance to thermal destruction and chemical assault.
These products display an exceptionally reduced coefficient of thermal growth– roughly 0.55 × 10 ⁻⁶/ K over the variety 20– 300 ° C– making them highly immune to thermal shock, a crucial characteristic in applications involving fast temperature biking.
They maintain architectural stability from cryogenic temperature levels approximately 1200 ° C in air, and also greater in inert atmospheres, before softening begins around 1600 ° C.
Quartz porcelains are inert to the majority of acids, including hydrochloric, nitric, and sulfuric acids, because of the stability of the SiO two network, although they are vulnerable to assault by hydrofluoric acid and strong antacid at elevated temperatures.
This chemical strength, integrated with high electric resistivity and ultraviolet (UV) transparency, makes them excellent for use in semiconductor handling, high-temperature heaters, and optical systems subjected to harsh conditions.
2. Production Processes and Microstructural Control

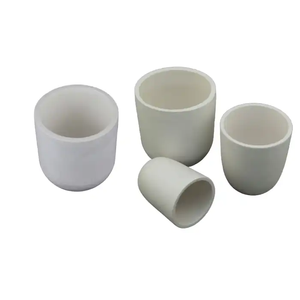

( Transparent Ceramics)
2.1 Melting, Sintering, and Devitrification Pathways
The production of quartz porcelains includes advanced thermal processing methods designed to preserve pureness while attaining preferred thickness and microstructure.
One usual approach is electrical arc melting of high-purity quartz sand, complied with by regulated air conditioning to form fused quartz ingots, which can after that be machined right into parts.
For sintered quartz ceramics, submicron quartz powders are compacted via isostatic pushing and sintered at temperatures between 1100 ° C and 1400 ° C, commonly with minimal additives to promote densification without generating extreme grain development or stage change.
An important obstacle in processing is avoiding devitrification– the spontaneous crystallization of metastable silica glass right into cristobalite or tridymite stages– which can compromise thermal shock resistance as a result of volume modifications during phase changes.
Manufacturers use exact temperature control, rapid cooling cycles, and dopants such as boron or titanium to suppress unwanted formation and keep a stable amorphous or fine-grained microstructure.
2.2 Additive Production and Near-Net-Shape Manufacture
Current developments in ceramic additive production (AM), specifically stereolithography (SHANTY TOWN) and binder jetting, have made it possible for the construction of complex quartz ceramic parts with high geometric accuracy.
In these procedures, silica nanoparticles are put on hold in a photosensitive material or uniquely bound layer-by-layer, adhered to by debinding and high-temperature sintering to accomplish complete densification.
This approach reduces product waste and enables the production of intricate geometries– such as fluidic channels, optical tooth cavities, or warm exchanger aspects– that are hard or difficult to achieve with standard machining.
Post-processing methods, including chemical vapor infiltration (CVI) or sol-gel coating, are sometimes applied to seal surface porosity and enhance mechanical and ecological resilience.
These technologies are increasing the application extent of quartz ceramics right into micro-electromechanical systems (MEMS), lab-on-a-chip gadgets, and tailored high-temperature fixtures.
3. Useful Qualities and Efficiency in Extreme Environments
3.1 Optical Openness and Dielectric Actions
Quartz ceramics exhibit special optical residential or commercial properties, including high transmission in the ultraviolet, noticeable, and near-infrared spectrum (from ~ 180 nm to 2500 nm), making them important in UV lithography, laser systems, and space-based optics.
This openness occurs from the absence of electronic bandgap transitions in the UV-visible range and marginal scattering as a result of homogeneity and low porosity.
Furthermore, they possess excellent dielectric residential properties, with a low dielectric constant (~ 3.8 at 1 MHz) and marginal dielectric loss, allowing their use as shielding components in high-frequency and high-power digital systems, such as radar waveguides and plasma activators.
Their capacity to preserve electrical insulation at raised temperatures further improves integrity sought after electric atmospheres.
3.2 Mechanical Behavior and Long-Term Sturdiness
Despite their high brittleness– a typical attribute among porcelains– quartz porcelains show excellent mechanical toughness (flexural stamina as much as 100 MPa) and excellent creep resistance at heats.
Their solidity (around 5.5– 6.5 on the Mohs scale) provides resistance to surface abrasion, although care must be taken throughout taking care of to prevent chipping or crack breeding from surface flaws.
Ecological longevity is another crucial benefit: quartz porcelains do not outgas dramatically in vacuum cleaner, withstand radiation damage, and maintain dimensional security over long term direct exposure to thermal biking and chemical environments.
This makes them recommended materials in semiconductor construction chambers, aerospace sensing units, and nuclear instrumentation where contamination and failure need to be lessened.
4. Industrial, Scientific, and Arising Technical Applications
4.1 Semiconductor and Photovoltaic Production Equipments
In the semiconductor sector, quartz porcelains are ubiquitous in wafer handling tools, including heating system tubes, bell containers, susceptors, and shower heads utilized in chemical vapor deposition (CVD) and plasma etching.
Their purity prevents metallic contamination of silicon wafers, while their thermal security makes certain consistent temperature distribution during high-temperature processing steps.
In photovoltaic production, quartz components are used in diffusion heaters and annealing systems for solar battery production, where regular thermal accounts and chemical inertness are necessary for high return and performance.
The demand for larger wafers and greater throughput has driven the advancement of ultra-large quartz ceramic structures with enhanced homogeneity and lowered issue thickness.
4.2 Aerospace, Protection, and Quantum Technology Combination
Past industrial processing, quartz ceramics are used in aerospace applications such as projectile assistance home windows, infrared domes, and re-entry car components due to their ability to endure severe thermal slopes and wind resistant stress and anxiety.
In defense systems, their openness to radar and microwave frequencies makes them appropriate for radomes and sensing unit housings.
A lot more just recently, quartz ceramics have found roles in quantum technologies, where ultra-low thermal growth and high vacuum compatibility are required for precision optical dental caries, atomic traps, and superconducting qubit rooms.
Their capacity to reduce thermal drift guarantees long coherence times and high measurement accuracy in quantum computing and sensing systems.
In summary, quartz porcelains represent a course of high-performance products that bridge the void in between conventional ceramics and specialty glasses.
Their exceptional combination of thermal stability, chemical inertness, optical openness, and electrical insulation enables innovations operating at the restrictions of temperature level, pureness, and precision.
As manufacturing techniques progress and demand grows for products efficient in withstanding significantly severe problems, quartz ceramics will certainly remain to play a fundamental function beforehand semiconductor, energy, aerospace, and quantum systems.
