1. Fundamental Composition and Structural Attributes of Quartz Ceramics
1.1 Chemical Purity and Crystalline-to-Amorphous Shift

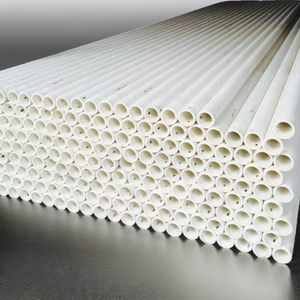

(Quartz Ceramics)
Quartz porcelains, likewise known as integrated silica or merged quartz, are a course of high-performance inorganic materials derived from silicon dioxide (SiO ₂) in its ultra-pure, non-crystalline (amorphous) kind.
Unlike standard ceramics that rely on polycrystalline frameworks, quartz ceramics are identified by their total absence of grain borders due to their lustrous, isotropic network of SiO four tetrahedra adjoined in a three-dimensional arbitrary network.
This amorphous framework is attained through high-temperature melting of natural quartz crystals or synthetic silica precursors, followed by rapid air conditioning to stop crystallization.
The resulting material has commonly over 99.9% SiO ₂, with trace impurities such as alkali steels (Na ⁺, K ⁺), aluminum, and iron maintained parts-per-million levels to protect optical clarity, electric resistivity, and thermal performance.
The absence of long-range order gets rid of anisotropic habits, making quartz porcelains dimensionally stable and mechanically consistent in all instructions– an essential benefit in precision applications.
1.2 Thermal Behavior and Resistance to Thermal Shock
Among the most defining functions of quartz ceramics is their exceptionally low coefficient of thermal development (CTE), usually around 0.55 × 10 ⁻⁶/ K in between 20 ° C and 300 ° C.
This near-zero growth develops from the versatile Si– O– Si bond angles in the amorphous network, which can adjust under thermal tension without breaking, allowing the material to endure rapid temperature changes that would crack conventional ceramics or steels.
Quartz ceramics can endure thermal shocks exceeding 1000 ° C, such as straight immersion in water after heating up to red-hot temperature levels, without splitting or spalling.
This home makes them important in atmospheres entailing repeated heating and cooling down cycles, such as semiconductor handling heating systems, aerospace components, and high-intensity illumination systems.
Furthermore, quartz ceramics maintain structural integrity approximately temperatures of around 1100 ° C in continual solution, with short-term exposure resistance coming close to 1600 ° C in inert ambiences.
( Quartz Ceramics)
Past thermal shock resistance, they show high softening temperatures (~ 1600 ° C )and outstanding resistance to devitrification– though long term direct exposure above 1200 ° C can initiate surface crystallization right into cristobalite, which may endanger mechanical strength as a result of quantity adjustments throughout phase transitions.
2. Optical, Electrical, and Chemical Qualities of Fused Silica Systems
2.1 Broadband Openness and Photonic Applications
Quartz ceramics are renowned for their exceptional optical transmission across a wide spectral variety, prolonging from the deep ultraviolet (UV) at ~ 180 nm to the near-infrared (IR) at ~ 2500 nm.
This openness is enabled by the lack of impurities and the homogeneity of the amorphous network, which reduces light spreading and absorption.
High-purity synthetic fused silica, created by means of fire hydrolysis of silicon chlorides, attains also better UV transmission and is made use of in vital applications such as excimer laser optics, photolithography lenses, and space-based telescopes.
The material’s high laser damages threshold– standing up to breakdown under extreme pulsed laser irradiation– makes it excellent for high-energy laser systems utilized in fusion research and industrial machining.
In addition, its low autofluorescence and radiation resistance guarantee reliability in clinical instrumentation, including spectrometers, UV curing systems, and nuclear tracking tools.
2.2 Dielectric Performance and Chemical Inertness
From an electric perspective, quartz porcelains are exceptional insulators with volume resistivity exceeding 10 ¹⁸ Ω · cm at area temperature level and a dielectric constant of around 3.8 at 1 MHz.
Their low dielectric loss tangent (tan δ < 0.0001) guarantees marginal energy dissipation in high-frequency and high-voltage applications, making them suitable for microwave windows, radar domes, and insulating substrates in digital settings up.
These residential or commercial properties continue to be steady over a broad temperature variety, unlike numerous polymers or traditional porcelains that deteriorate electrically under thermal tension.
Chemically, quartz porcelains show impressive inertness to most acids, consisting of hydrochloric, nitric, and sulfuric acids, due to the stability of the Si– O bond.
Nonetheless, they are at risk to strike by hydrofluoric acid (HF) and strong alkalis such as hot sodium hydroxide, which break the Si– O– Si network.
This careful reactivity is made use of in microfabrication procedures where controlled etching of merged silica is called for.
In aggressive industrial atmospheres– such as chemical processing, semiconductor damp benches, and high-purity fluid handling– quartz ceramics act as linings, sight glasses, and activator parts where contamination must be lessened.
3. Manufacturing Processes and Geometric Engineering of Quartz Ceramic Components
3.1 Melting and Developing Methods
The manufacturing of quartz porcelains entails numerous specialized melting methods, each tailored to certain pureness and application requirements.
Electric arc melting utilizes high-purity quartz sand thawed in a water-cooled copper crucible under vacuum or inert gas, creating large boules or tubes with outstanding thermal and mechanical properties.
Flame combination, or burning synthesis, involves burning silicon tetrachloride (SiCl ₄) in a hydrogen-oxygen fire, depositing fine silica particles that sinter right into a clear preform– this method produces the highest optical high quality and is made use of for synthetic fused silica.
Plasma melting offers a different route, providing ultra-high temperatures and contamination-free handling for niche aerospace and defense applications.
When thawed, quartz ceramics can be formed through precision casting, centrifugal forming (for tubes), or CNC machining of pre-sintered blanks.
As a result of their brittleness, machining needs diamond devices and careful control to avoid microcracking.
3.2 Accuracy Fabrication and Surface Area Ending Up
Quartz ceramic elements are often produced right into intricate geometries such as crucibles, tubes, poles, home windows, and custom-made insulators for semiconductor, photovoltaic or pv, and laser industries.
Dimensional precision is critical, particularly in semiconductor production where quartz susceptors and bell jars need to preserve precise placement and thermal uniformity.
Surface area ending up plays a vital function in performance; sleek surfaces reduce light spreading in optical parts and reduce nucleation websites for devitrification in high-temperature applications.
Engraving with buffered HF options can produce controlled surface textures or remove damaged layers after machining.
For ultra-high vacuum cleaner (UHV) systems, quartz ceramics are cleaned up and baked to eliminate surface-adsorbed gases, making certain marginal outgassing and compatibility with sensitive procedures like molecular beam of light epitaxy (MBE).
4. Industrial and Scientific Applications of Quartz Ceramics
4.1 Role in Semiconductor and Photovoltaic Manufacturing
Quartz porcelains are foundational materials in the fabrication of incorporated circuits and solar cells, where they act as heater tubes, wafer watercrafts (susceptors), and diffusion chambers.
Their capability to endure heats in oxidizing, decreasing, or inert environments– incorporated with low metallic contamination– makes sure process pureness and yield.
During chemical vapor deposition (CVD) or thermal oxidation, quartz elements preserve dimensional stability and stand up to warping, stopping wafer damage and imbalance.
In photovoltaic production, quartz crucibles are used to expand monocrystalline silicon ingots using the Czochralski procedure, where their purity straight affects the electric top quality of the final solar cells.
4.2 Usage in Lights, Aerospace, and Analytical Instrumentation
In high-intensity discharge (HID) lamps and UV sanitation systems, quartz ceramic envelopes have plasma arcs at temperatures exceeding 1000 ° C while sending UV and visible light successfully.
Their thermal shock resistance prevents failure during quick lamp ignition and shutdown cycles.
In aerospace, quartz ceramics are used in radar home windows, sensing unit real estates, and thermal protection systems because of their low dielectric consistent, high strength-to-density proportion, and security under aerothermal loading.
In analytical chemistry and life scientific researches, fused silica blood vessels are important in gas chromatography (GC) and capillary electrophoresis (CE), where surface area inertness protects against example adsorption and guarantees exact separation.
In addition, quartz crystal microbalances (QCMs), which rely upon the piezoelectric homes of crystalline quartz (distinct from integrated silica), utilize quartz porcelains as protective real estates and protecting assistances in real-time mass noticing applications.
Finally, quartz porcelains represent an one-of-a-kind intersection of extreme thermal durability, optical openness, and chemical pureness.
Their amorphous structure and high SiO ₂ web content enable efficiency in settings where traditional materials stop working, from the heart of semiconductor fabs to the side of room.
As innovation advances toward higher temperatures, greater accuracy, and cleaner procedures, quartz porcelains will remain to act as a vital enabler of innovation across science and sector.
