1. Product Basics and Architectural Properties
1.1 Crystal Chemistry and Polymorphism

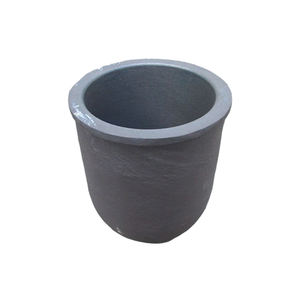

(Silicon Carbide Crucibles)
Silicon carbide (SiC) is a covalent ceramic composed of silicon and carbon atoms arranged in a tetrahedral latticework, developing one of one of the most thermally and chemically durable materials known.
It exists in over 250 polytypic types, with the 3C (cubic), 4H, and 6H hexagonal frameworks being most appropriate for high-temperature applications.
The strong Si– C bonds, with bond power going beyond 300 kJ/mol, give exceptional firmness, thermal conductivity, and resistance to thermal shock and chemical assault.
In crucible applications, sintered or reaction-bonded SiC is liked as a result of its capacity to preserve architectural honesty under extreme thermal gradients and harsh liquified settings.
Unlike oxide porcelains, SiC does not go through disruptive phase shifts as much as its sublimation factor (~ 2700 ° C), making it ideal for continual operation over 1600 ° C.
1.2 Thermal and Mechanical Performance
A specifying quality of SiC crucibles is their high thermal conductivity– ranging from 80 to 120 W/(m · K)– which advertises uniform heat distribution and lessens thermal tension during quick heating or cooling.
This residential or commercial property contrasts dramatically with low-conductivity ceramics like alumina (≈ 30 W/(m · K)), which are vulnerable to cracking under thermal shock.
SiC additionally displays excellent mechanical toughness at elevated temperature levels, keeping over 80% of its room-temperature flexural toughness (as much as 400 MPa) even at 1400 ° C.
Its reduced coefficient of thermal growth (~ 4.0 × 10 ⁻⁶/ K) further boosts resistance to thermal shock, a vital factor in repeated biking in between ambient and operational temperature levels.
In addition, SiC demonstrates exceptional wear and abrasion resistance, ensuring lengthy life span in environments including mechanical handling or turbulent melt circulation.
2. Production Methods and Microstructural Control

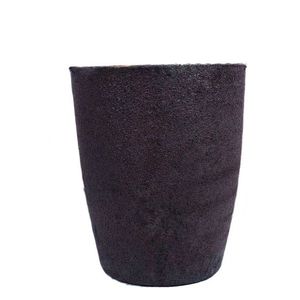

( Silicon Carbide Crucibles)
2.1 Sintering Methods and Densification Methods
Commercial SiC crucibles are mainly fabricated with pressureless sintering, reaction bonding, or warm pushing, each offering unique advantages in price, pureness, and efficiency.
Pressureless sintering involves condensing great SiC powder with sintering help such as boron and carbon, followed by high-temperature treatment (2000– 2200 ° C )in inert ambience to accomplish near-theoretical thickness.
This method yields high-purity, high-strength crucibles suitable for semiconductor and progressed alloy handling.
Reaction-bonded SiC (RBSC) is generated by infiltrating a porous carbon preform with molten silicon, which reacts to form β-SiC sitting, leading to a composite of SiC and recurring silicon.
While a little lower in thermal conductivity because of metal silicon additions, RBSC offers superb dimensional security and reduced production expense, making it preferred for large industrial use.
Hot-pressed SiC, though a lot more expensive, gives the highest possible density and pureness, booked for ultra-demanding applications such as single-crystal growth.
2.2 Surface Area High Quality and Geometric Precision
Post-sintering machining, including grinding and washing, makes sure precise dimensional tolerances and smooth inner surface areas that reduce nucleation sites and reduce contamination threat.
Surface area roughness is thoroughly managed to avoid melt adhesion and assist in simple launch of strengthened products.
Crucible geometry– such as wall surface thickness, taper angle, and lower curvature– is maximized to stabilize thermal mass, architectural stamina, and compatibility with furnace burner.
Custom-made designs accommodate details thaw quantities, heating profiles, and material reactivity, guaranteeing optimal efficiency throughout diverse industrial procedures.
Advanced quality assurance, including X-ray diffraction, scanning electron microscopy, and ultrasonic testing, validates microstructural homogeneity and absence of flaws like pores or splits.
3. Chemical Resistance and Interaction with Melts
3.1 Inertness in Hostile Atmospheres
SiC crucibles display exceptional resistance to chemical attack by molten metals, slags, and non-oxidizing salts, outmatching standard graphite and oxide porcelains.
They are stable touching molten light weight aluminum, copper, silver, and their alloys, resisting wetting and dissolution because of low interfacial power and formation of protective surface oxides.
In silicon and germanium handling for photovoltaics and semiconductors, SiC crucibles avoid metal contamination that could break down digital residential properties.
However, under extremely oxidizing problems or in the existence of alkaline changes, SiC can oxidize to create silica (SiO ₂), which might respond better to develop low-melting-point silicates.
Consequently, SiC is best suited for neutral or lowering ambiences, where its stability is made best use of.
3.2 Limitations and Compatibility Considerations
Despite its toughness, SiC is not globally inert; it responds with specific molten products, specifically iron-group steels (Fe, Ni, Co) at high temperatures via carburization and dissolution processes.
In molten steel handling, SiC crucibles weaken quickly and are therefore prevented.
In a similar way, alkali and alkaline earth steels (e.g., Li, Na, Ca) can lower SiC, launching carbon and developing silicides, limiting their use in battery material synthesis or reactive steel casting.
For molten glass and ceramics, SiC is usually suitable however might present trace silicon right into highly sensitive optical or digital glasses.
Understanding these material-specific interactions is essential for choosing the suitable crucible kind and making certain process purity and crucible durability.
4. Industrial Applications and Technical Evolution
4.1 Metallurgy, Semiconductor, and Renewable Energy Sectors
SiC crucibles are indispensable in the manufacturing of multicrystalline and monocrystalline silicon ingots for solar cells, where they hold up against long term direct exposure to thaw silicon at ~ 1420 ° C.
Their thermal stability makes sure consistent crystallization and minimizes misplacement density, directly influencing photovoltaic efficiency.
In foundries, SiC crucibles are made use of for melting non-ferrous steels such as aluminum and brass, offering longer life span and minimized dross formation contrasted to clay-graphite options.
They are likewise used in high-temperature lab for thermogravimetric analysis, differential scanning calorimetry, and synthesis of advanced ceramics and intermetallic compounds.
4.2 Future Fads and Advanced Material Integration
Arising applications consist of the use of SiC crucibles in next-generation nuclear products screening and molten salt activators, where their resistance to radiation and molten fluorides is being reviewed.
Coatings such as pyrolytic boron nitride (PBN) or yttria (Y ₂ O ₃) are being related to SiC surface areas to further boost chemical inertness and protect against silicon diffusion in ultra-high-purity processes.
Additive production of SiC components making use of binder jetting or stereolithography is under growth, appealing complex geometries and rapid prototyping for specialized crucible styles.
As demand expands for energy-efficient, resilient, and contamination-free high-temperature processing, silicon carbide crucibles will stay a keystone innovation in advanced materials making.
In conclusion, silicon carbide crucibles stand for an important allowing component in high-temperature industrial and clinical processes.
Their exceptional mix of thermal stability, mechanical stamina, and chemical resistance makes them the product of selection for applications where efficiency and dependability are critical.
5. Supplier
Advanced Ceramics founded on October 17, 2012, is a high-tech enterprise committed to the research and development, production, processing, sales and technical services of ceramic relative materials and products. Our products includes but not limited to Boron Carbide Ceramic Products, Boron Nitride Ceramic Products, Silicon Carbide Ceramic Products, Silicon Nitride Ceramic Products, Zirconium Dioxide Ceramic Products, etc. If you are interested, please feel free to contact us.
