1. Material Foundations and Collaborating Layout
1.1 Inherent Properties of Component Phases

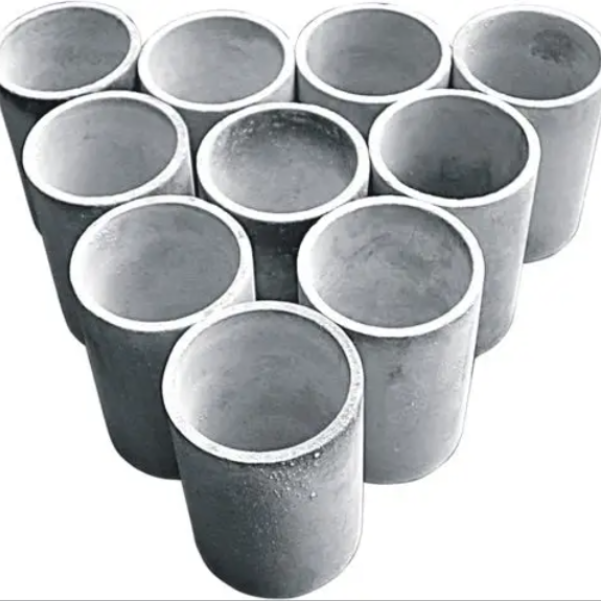

(Silicon nitride and silicon carbide composite ceramic)
Silicon nitride (Si six N FOUR) and silicon carbide (SiC) are both covalently adhered, non-oxide porcelains renowned for their outstanding efficiency in high-temperature, destructive, and mechanically requiring settings.
Silicon nitride shows exceptional fracture strength, thermal shock resistance, and creep stability as a result of its special microstructure composed of lengthened β-Si six N four grains that allow fracture deflection and linking systems.
It preserves toughness up to 1400 ° C and possesses a reasonably reduced thermal development coefficient (~ 3.2 × 10 ⁻⁶/ K), lessening thermal stresses during rapid temperature changes.
On the other hand, silicon carbide provides premium solidity, thermal conductivity (as much as 120– 150 W/(m · K )for solitary crystals), oxidation resistance, and chemical inertness, making it optimal for unpleasant and radiative warmth dissipation applications.
Its vast bandgap (~ 3.3 eV for 4H-SiC) additionally gives superb electric insulation and radiation tolerance, useful in nuclear and semiconductor contexts.
When combined right into a composite, these products show corresponding actions: Si four N four improves durability and damage resistance, while SiC improves thermal administration and use resistance.
The resulting hybrid ceramic attains an equilibrium unattainable by either stage alone, creating a high-performance structural product tailored for severe service problems.
1.2 Composite Architecture and Microstructural Engineering
The layout of Si six N ₄– SiC composites involves specific control over phase distribution, grain morphology, and interfacial bonding to make best use of collaborating results.
Normally, SiC is introduced as great particle reinforcement (ranging from submicron to 1 µm) within a Si five N four matrix, although functionally rated or layered architectures are also checked out for specialized applications.
Throughout sintering– usually via gas-pressure sintering (GPS) or hot pressing– SiC particles influence the nucleation and development kinetics of β-Si five N ₄ grains, commonly advertising finer and more evenly oriented microstructures.
This improvement improves mechanical homogeneity and minimizes flaw dimension, contributing to improved strength and reliability.
Interfacial compatibility between the two phases is vital; due to the fact that both are covalent ceramics with similar crystallographic balance and thermal growth actions, they develop systematic or semi-coherent borders that resist debonding under tons.
Ingredients such as yttria (Y TWO O ₃) and alumina (Al two O ₃) are utilized as sintering help to advertise liquid-phase densification of Si ₃ N ₄ without endangering the security of SiC.
However, extreme second stages can break down high-temperature performance, so structure and processing must be optimized to decrease glassy grain boundary films.
2. Handling Methods and Densification Difficulties
( Silicon nitride and silicon carbide composite ceramic)
2.1 Powder Prep Work and Shaping Techniques
Premium Si Three N ₄– SiC composites start with uniform blending of ultrafine, high-purity powders utilizing damp round milling, attrition milling, or ultrasonic diffusion in organic or aqueous media.
Achieving consistent dispersion is vital to stop cluster of SiC, which can serve as anxiety concentrators and lower fracture strength.
Binders and dispersants are included in support suspensions for forming methods such as slip spreading, tape casting, or shot molding, relying on the preferred part geometry.
Environment-friendly bodies are then carefully dried out and debound to get rid of organics prior to sintering, a process needing controlled home heating rates to prevent fracturing or warping.
For near-net-shape production, additive techniques like binder jetting or stereolithography are arising, making it possible for complex geometries formerly unachievable with standard ceramic processing.
These methods need customized feedstocks with enhanced rheology and green toughness, often involving polymer-derived porcelains or photosensitive materials packed with composite powders.
2.2 Sintering Devices and Stage Stability
Densification of Si Five N ₄– SiC composites is testing due to the strong covalent bonding and limited self-diffusion of nitrogen and carbon at practical temperature levels.
Liquid-phase sintering using rare-earth or alkaline planet oxides (e.g., Y ₂ O FOUR, MgO) reduces the eutectic temperature level and enhances mass transport via a transient silicate thaw.
Under gas stress (typically 1– 10 MPa N ₂), this melt facilitates rearrangement, solution-precipitation, and final densification while subduing decomposition of Si ₃ N ₄.
The visibility of SiC affects viscosity and wettability of the liquid stage, potentially changing grain development anisotropy and final structure.
Post-sintering warmth therapies may be put on crystallize recurring amorphous phases at grain boundaries, boosting high-temperature mechanical residential properties and oxidation resistance.
X-ray diffraction (XRD) and scanning electron microscopy (SEM) are regularly used to validate stage pureness, absence of undesirable secondary stages (e.g., Si two N ₂ O), and uniform microstructure.
3. Mechanical and Thermal Performance Under Lots
3.1 Stamina, Strength, and Exhaustion Resistance
Si Five N FOUR– SiC compounds demonstrate premium mechanical performance compared to monolithic ceramics, with flexural staminas exceeding 800 MPa and fracture durability values getting to 7– 9 MPa · m 1ST/ TWO.
The reinforcing result of SiC fragments hampers misplacement movement and fracture propagation, while the extended Si three N ₄ grains continue to offer strengthening through pull-out and connecting systems.
This dual-toughening approach causes a product extremely immune to influence, thermal cycling, and mechanical tiredness– vital for revolving parts and architectural components in aerospace and energy systems.
Creep resistance continues to be exceptional approximately 1300 ° C, attributed to the security of the covalent network and lessened grain border gliding when amorphous stages are decreased.
Solidity worths normally range from 16 to 19 GPa, supplying exceptional wear and disintegration resistance in unpleasant environments such as sand-laden circulations or sliding contacts.
3.2 Thermal Management and Environmental Resilience
The enhancement of SiC substantially raises the thermal conductivity of the composite, usually increasing that of pure Si ₃ N ₄ (which ranges from 15– 30 W/(m · K) )to 40– 60 W/(m · K) depending upon SiC content and microstructure.
This enhanced heat transfer capacity allows for extra reliable thermal management in parts subjected to intense localized home heating, such as burning linings or plasma-facing components.
The composite maintains dimensional security under steep thermal slopes, withstanding spallation and breaking due to matched thermal expansion and high thermal shock parameter (R-value).
Oxidation resistance is another essential benefit; SiC creates a protective silica (SiO ₂) layer upon exposure to oxygen at raised temperatures, which further densifies and secures surface defects.
This passive layer shields both SiC and Si ₃ N FOUR (which additionally oxidizes to SiO two and N ₂), making certain long-term toughness in air, vapor, or burning atmospheres.
4. Applications and Future Technical Trajectories
4.1 Aerospace, Power, and Industrial Systems
Si Five N FOUR– SiC compounds are significantly deployed in next-generation gas wind turbines, where they enable higher operating temperatures, improved fuel efficiency, and reduced air conditioning demands.
Elements such as turbine blades, combustor linings, and nozzle overview vanes take advantage of the material’s ability to hold up against thermal biking and mechanical loading without substantial destruction.
In nuclear reactors, particularly high-temperature gas-cooled reactors (HTGRs), these composites work as gas cladding or structural assistances because of their neutron irradiation tolerance and fission item retention ability.
In commercial setups, they are used in molten steel handling, kiln furniture, and wear-resistant nozzles and bearings, where conventional steels would certainly stop working too soon.
Their light-weight nature (thickness ~ 3.2 g/cm TWO) likewise makes them attractive for aerospace propulsion and hypersonic automobile elements based on aerothermal heating.
4.2 Advanced Production and Multifunctional Assimilation
Emerging research focuses on creating functionally graded Si ₃ N ₄– SiC frameworks, where structure varies spatially to optimize thermal, mechanical, or electromagnetic buildings across a solitary component.
Crossbreed systems including CMC (ceramic matrix composite) designs with fiber support (e.g., SiC_f/ SiC– Si Five N ₄) press the boundaries of damage resistance and strain-to-failure.
Additive manufacturing of these compounds allows topology-optimized warmth exchangers, microreactors, and regenerative cooling channels with internal latticework frameworks unachievable using machining.
In addition, their integral dielectric buildings and thermal security make them candidates for radar-transparent radomes and antenna windows in high-speed platforms.
As demands grow for products that carry out reliably under extreme thermomechanical loads, Si four N FOUR– SiC compounds represent an essential advancement in ceramic design, merging effectiveness with functionality in a solitary, lasting system.
Finally, silicon nitride– silicon carbide composite ceramics exhibit the power of materials-by-design, leveraging the strengths of 2 advanced ceramics to develop a crossbreed system with the ability of flourishing in the most serious operational environments.
Their continued growth will certainly play a main role ahead of time tidy power, aerospace, and commercial modern technologies in the 21st century.
