1. Material Fundamentals and Crystal Chemistry
1.1 Composition and Polymorphic Framework

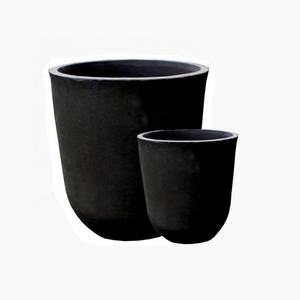

(Silicon Carbide Ceramics)
Silicon carbide (SiC) is a covalent ceramic compound composed of silicon and carbon atoms in a 1:1 stoichiometric ratio, renowned for its remarkable firmness, thermal conductivity, and chemical inertness.
It exists in over 250 polytypes– crystal frameworks varying in stacking series– among which 3C-SiC (cubic), 4H-SiC, and 6H-SiC (hexagonal) are the most highly relevant.
The strong directional covalent bonds (Si– C bond energy ~ 318 kJ/mol) cause a high melting factor (~ 2700 ° C), reduced thermal development (~ 4.0 × 10 ⁻⁶/ K), and excellent resistance to thermal shock.
Unlike oxide porcelains such as alumina, SiC does not have a native glazed phase, adding to its stability in oxidizing and corrosive ambiences approximately 1600 ° C.
Its vast bandgap (2.3– 3.3 eV, depending upon polytype) additionally endows it with semiconductor homes, making it possible for dual use in architectural and digital applications.
1.2 Sintering Obstacles and Densification Techniques
Pure SiC is incredibly difficult to densify because of its covalent bonding and low self-diffusion coefficients, necessitating using sintering aids or sophisticated handling strategies.
Reaction-bonded SiC (RB-SiC) is created by infiltrating permeable carbon preforms with molten silicon, forming SiC sitting; this approach returns near-net-shape elements with recurring silicon (5– 20%).
Solid-state sintered SiC (SSiC) utilizes boron and carbon additives to promote densification at ~ 2000– 2200 ° C under inert environment, achieving > 99% theoretical thickness and superior mechanical residential properties.
Liquid-phase sintered SiC (LPS-SiC) employs oxide additives such as Al Two O SIX– Y ₂ O ₃, forming a short-term liquid that boosts diffusion however may lower high-temperature strength as a result of grain-boundary stages.
Warm pressing and trigger plasma sintering (SPS) provide fast, pressure-assisted densification with great microstructures, suitable for high-performance elements calling for marginal grain growth.
2. Mechanical and Thermal Performance Characteristics
2.1 Stamina, Hardness, and Wear Resistance
Silicon carbide porcelains exhibit Vickers hardness values of 25– 30 GPa, 2nd only to diamond and cubic boron nitride amongst engineering products.
Their flexural stamina generally ranges from 300 to 600 MPa, with crack toughness (K_IC) of 3– 5 MPa · m ONE/ TWO– moderate for porcelains yet improved with microstructural design such as whisker or fiber support.
The mix of high firmness and elastic modulus (~ 410 GPa) makes SiC remarkably immune to abrasive and abrasive wear, outperforming tungsten carbide and set steel in slurry and particle-laden environments.
( Silicon Carbide Ceramics)
In industrial applications such as pump seals, nozzles, and grinding media, SiC elements demonstrate service lives several times longer than standard options.
Its low density (~ 3.1 g/cm FIVE) further contributes to use resistance by reducing inertial forces in high-speed turning parts.
2.2 Thermal Conductivity and Security
One of SiC’s most distinct features is its high thermal conductivity– varying from 80 to 120 W/(m · K )for polycrystalline types, and up to 490 W/(m · K) for single-crystal 4H-SiC– going beyond most metals except copper and aluminum.
This home allows reliable heat dissipation in high-power digital substrates, brake discs, and warmth exchanger parts.
Coupled with reduced thermal growth, SiC shows superior thermal shock resistance, evaluated by the R-parameter (σ(1– ν)k/ αE), where high worths suggest strength to quick temperature level changes.
For instance, SiC crucibles can be heated up from space temperature level to 1400 ° C in mins without breaking, a feat unattainable for alumina or zirconia in comparable conditions.
Furthermore, SiC maintains stamina up to 1400 ° C in inert atmospheres, making it perfect for heating system components, kiln furnishings, and aerospace parts exposed to extreme thermal cycles.
3. Chemical Inertness and Rust Resistance
3.1 Behavior in Oxidizing and Lowering Atmospheres
At temperatures below 800 ° C, SiC is extremely stable in both oxidizing and reducing settings.
Over 800 ° C in air, a protective silica (SiO TWO) layer kinds on the surface area via oxidation (SiC + 3/2 O TWO → SiO TWO + CO), which passivates the material and reduces further degradation.
However, in water vapor-rich or high-velocity gas streams over 1200 ° C, this silica layer can volatilize as Si(OH)₄, bring about accelerated recession– a vital factor to consider in generator and burning applications.
In reducing environments or inert gases, SiC remains secure up to its disintegration temperature level (~ 2700 ° C), with no stage modifications or stamina loss.
This security makes it ideal for molten steel handling, such as aluminum or zinc crucibles, where it stands up to moistening and chemical assault much better than graphite or oxides.
3.2 Resistance to Acids, Alkalis, and Molten Salts
Silicon carbide is essentially inert to all acids other than hydrofluoric acid (HF) and strong oxidizing acid mixes (e.g., HF– HNO SIX).
It reveals outstanding resistance to alkalis up to 800 ° C, though prolonged direct exposure to thaw NaOH or KOH can trigger surface area etching by means of development of soluble silicates.
In molten salt environments– such as those in focused solar power (CSP) or atomic power plants– SiC demonstrates exceptional rust resistance contrasted to nickel-based superalloys.
This chemical robustness underpins its use in chemical procedure equipment, including valves, liners, and warmth exchanger tubes managing aggressive media like chlorine, sulfuric acid, or seawater.
4. Industrial Applications and Arising Frontiers
4.1 Established Uses in Energy, Protection, and Production
Silicon carbide ceramics are essential to various high-value commercial systems.
In the energy industry, they work as wear-resistant liners in coal gasifiers, elements in nuclear fuel cladding (SiC/SiC compounds), and substratums for high-temperature strong oxide fuel cells (SOFCs).
Protection applications consist of ballistic shield plates, where SiC’s high hardness-to-density ratio supplies exceptional protection versus high-velocity projectiles compared to alumina or boron carbide at lower price.
In production, SiC is used for accuracy bearings, semiconductor wafer managing elements, and abrasive blasting nozzles due to its dimensional security and purity.
Its use in electric vehicle (EV) inverters as a semiconductor substrate is swiftly expanding, driven by efficiency gains from wide-bandgap electronics.
4.2 Next-Generation Advancements and Sustainability
Continuous research concentrates on SiC fiber-reinforced SiC matrix compounds (SiC/SiC), which exhibit pseudo-ductile habits, enhanced sturdiness, and maintained stamina above 1200 ° C– excellent for jet engines and hypersonic vehicle leading edges.
Additive manufacturing of SiC via binder jetting or stereolithography is progressing, making it possible for complex geometries formerly unattainable through traditional developing techniques.
From a sustainability perspective, SiC’s long life reduces replacement regularity and lifecycle exhausts in commercial systems.
Recycling of SiC scrap from wafer cutting or grinding is being established through thermal and chemical recovery processes to redeem high-purity SiC powder.
As markets press towards greater performance, electrification, and extreme-environment operation, silicon carbide-based ceramics will certainly continue to be at the forefront of sophisticated products engineering, connecting the space in between structural strength and useful convenience.
