1. Fundamentals of Foam Generation and the Duty in Lightweight Concrete Systems
1.1 Principles of Air Entrainment and Cellular Structure Development

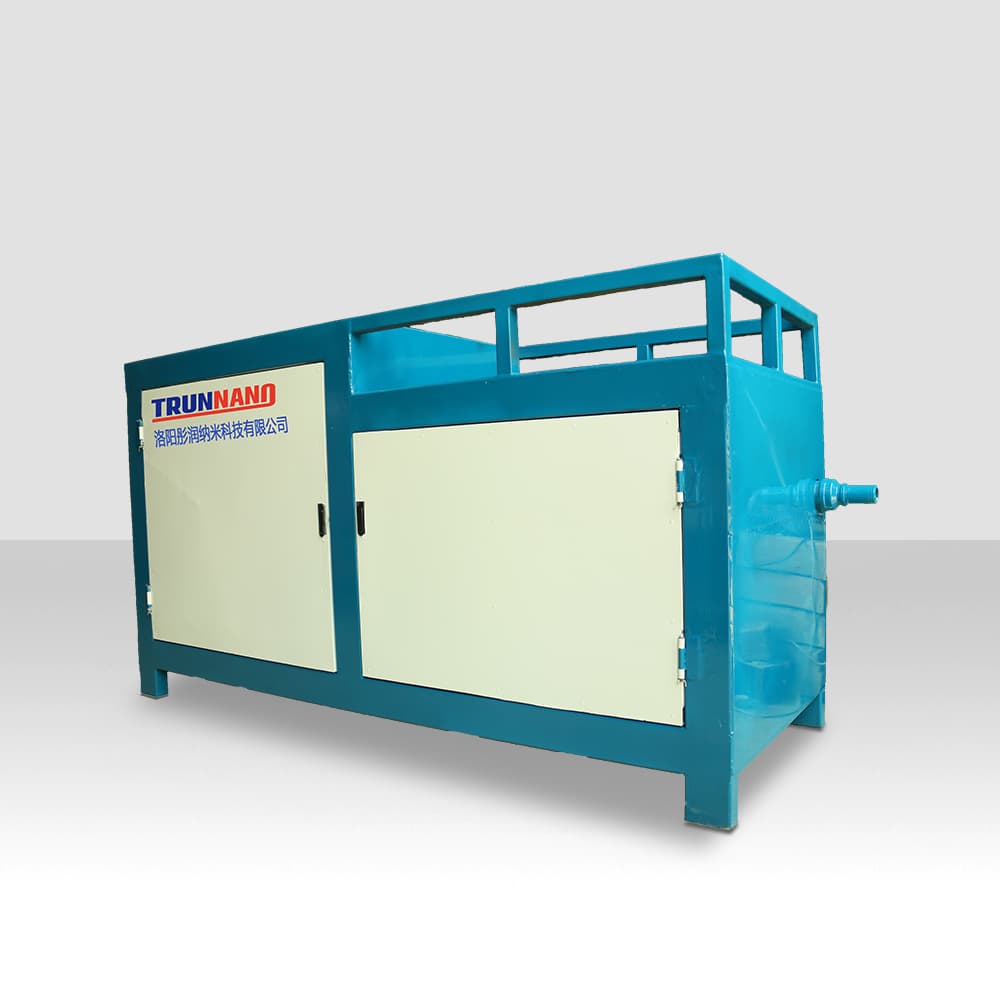

(Lightweight Concrete Foam Generators)
Lightweight concrete, a class of building and construction products characterized by reduced density and improved thermal insulation, relies fundamentally on the controlled intro of air or gas spaces within a cementitious matrix– a process referred to as foaming.
The production of these uniformly distributed, secure air cells is achieved with making use of a specialized device known as a foam generator, which produces fine, microscale bubbles that are consequently blended right into the concrete slurry.
These bubbles, usually varying from 50 to 500 micrometers in diameter, become completely entrained upon cement hydration, causing a cellular concrete framework with considerably lower device weight– frequently in between 300 kg/m six and 1,800 kg/m TWO– contrasted to traditional concrete (~ 2,400 kg/m TWO).
The foam generator is not just a supporting tool but a critical engineering element that establishes the top quality, uniformity, and efficiency of the last light-weight concrete product.
The procedure starts with a fluid frothing representative, generally a protein-based or synthetic surfactant remedy, which is introduced into the generator where it is mechanically or pneumatically distributed into a thick foam via high shear or pressed air injection.
The stability and bubble dimension circulation of the produced foam straight influence crucial material residential or commercial properties such as compressive stamina, thermal conductivity, and workability.
1.2 Classification and Operational Mechanisms of Foam Generators
Foam generators are broadly categorized right into three key kinds based upon their operational principles: low-pressure (or wet-film), high-pressure (or dynamic), and rotary (or centrifugal) systems.
Low-pressure generators make use of a porous tool– such as a fine mesh, textile, or ceramic plate– where compressed air is compelled, producing bubbles as the foaming remedy streams over the surface area.
This method generates reasonably big, less uniform bubbles and is normally utilized for lower-grade applications where accurate control is much less critical.
High-pressure systems, on the other hand, use a nozzle-based design where a high-velocity stream of compressed air shears the frothing liquid right into a penalty, homogeneous foam with narrow bubble size distribution.
These systems use superior control over foam density and stability, making them perfect for structural-grade lightweight concrete and precast applications.

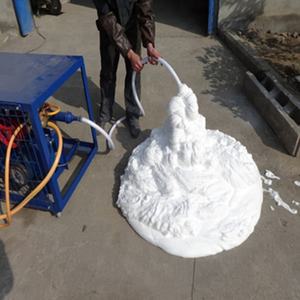

( Lightweight Concrete Foam Generators)
Rotating foam generators make use of a spinning disk or drum that flings the foaming remedy right into a stream of air, developing bubbles with mechanical diffusion.
While less specific than high-pressure systems, rotary generators are valued for their robustness, simplicity of upkeep, and constant outcome, appropriate for massive on-site putting operations.
The option of foam generator kind relies on project-specific requirements, including preferred concrete thickness, production volume, and performance specs.
2. Product Scientific Research Behind Foam Stability and Concrete Performance
2.1 Foaming Representatives and Interfacial Chemistry
The effectiveness of a foam generator is inherently linked to the chemical composition and physical actions of the foaming representative.
Foaming representatives are surfactants that lower the surface area tension of water, making it possible for the development of secure air-liquid interfaces.
Protein-based agents, derived from hydrolyzed keratin or albumin, create resilient, elastic foam films with outstanding stability and are frequently preferred in structural applications.
Artificial representatives, such as alkyl sulfonates or ethoxylated alcohols, provide faster foam generation and reduced price but may produce less secure bubbles under extended mixing or adverse environmental problems.
The molecular structure of the surfactant figures out the density and mechanical toughness of the lamellae (thin liquid movies) surrounding each bubble, which need to resist coalescence and drainage throughout blending and treating.
Ingredients such as thickness modifiers, stabilizers, and pH barriers are often integrated right into foaming options to boost foam persistence and compatibility with concrete chemistry.
2.2 Influence of Foam Characteristics on Concrete Residence
The physical characteristics of the created foam– bubble size, dimension distribution, air content, and foam density– directly dictate the macroscopic actions of light-weight concrete.
Smaller sized, evenly distributed bubbles enhance mechanical stamina by minimizing anxiety focus factors and developing an extra homogeneous microstructure.
Alternatively, bigger or uneven bubbles can function as imperfections, reducing compressive toughness and enhancing leaks in the structure.
Foam security is similarly essential; premature collapse or coalescence during blending result in non-uniform thickness, partition, and lowered insulation performance.
The air-void system also influences thermal conductivity, with finer, closed-cell frameworks providing exceptional insulation because of entraped air’s reduced thermal diffusivity.
In addition, the water material of the foam influences the water-cement ratio of the final mix, necessitating exact calibration to stay clear of deteriorating the concrete matrix or postponing hydration.
Advanced foam generators now integrate real-time monitoring and comments systems to maintain consistent foam outcome, ensuring reproducibility across batches.
3. Assimilation in Modern Building And Construction and Industrial Applications
3.1 Structural and Non-Structural Uses of Foamed Concrete
Light-weight concrete produced through foam generators is employed across a broad range of building and construction applications, varying from insulation panels and void filling up to load-bearing walls and pavement systems.
In building envelopes, frothed concrete supplies exceptional thermal and acoustic insulation, contributing to energy-efficient designs and minimized a/c tons.
Its reduced thickness also decreases structural dead load, allowing for smaller sized foundations and longer periods in high-rise and bridge construction.
In civil design, it is utilized for trench backfilling, tunneling, and slope stablizing, where its self-leveling and low-stress attributes prevent ground disruption and boost safety.
Precast suppliers use high-precision foam generators to produce light-weight blocks, panels, and architectural elements with limited dimensional resistances and constant top quality.
Moreover, foamed concrete exhibits inherent fire resistance as a result of its reduced thermal conductivity and lack of organic components, making it suitable for fire-rated assemblies and passive fire protection systems.
3.2 Automation, Scalability, and On-Site Manufacturing Solutions
Modern building demands quick, scalable, and reliable manufacturing of lightweight concrete, driving the assimilation of foam generators right into automatic batching and pumping systems.
Totally automated plants can integrate foam generation with cement blending, water application, and additive injection, making it possible for constant manufacturing with very little human treatment.
Mobile foam generator units are increasingly released on construction websites, enabling on-demand construction of foamed concrete directly at the factor of use, lowering transportation costs and material waste.
These systems are usually equipped with electronic controls, remote monitoring, and information logging abilities to ensure conformity with design specs and high quality requirements.
The scalability of foam generation innovation– from small portable devices to industrial-scale systems– supports its adoption in both established and arising markets, advertising sustainable structure techniques worldwide.
4. Technological Developments and Future Instructions in Foam Generation
4.1 Smart Foam Generators and Real-Time Refine Control
Emerging innovations in foam generator design focus on improving accuracy, performance, and adaptability through digitalization and sensing unit combination.
Smart foam generators equipped with pressure sensing units, circulation meters, and optical bubble analyzers can dynamically readjust air-to-liquid proportions and screen foam top quality in genuine time.
Artificial intelligence formulas are being discovered to forecast foam behavior based on environmental problems, resources variants, and historic efficiency data.
Such developments intend to reduce batch-to-batch irregularity and optimize product performance, particularly in high-stakes applications like nuclear shielding or overseas construction.
4.2 Sustainability, Environmental Impact, and Environment-friendly Material Combination
As the building market moves toward decarbonization, foam generators contribute in reducing the environmental footprint of concrete.
By lowering material thickness, much less cement is needed per unit volume, straight minimizing carbon monoxide â‚‚ discharges associated with concrete production.
Furthermore, foamed concrete can incorporate extra cementitious materials (SCMs) such as fly ash, slag, or silica fume, improving sustainability without endangering efficiency.
Study is likewise underway to establish bio-based lathering representatives stemmed from eco-friendly resources, minimizing dependence on petrochemical surfactants.
Future advancements might include energy-efficient foam generation techniques, integration with carbon capture modern technologies, and recyclable concrete formulations allowed by steady cellular frameworks.
Finally, the light-weight concrete foam generator is even more than a mechanical tool– it is an essential enabler of innovative product engineering in modern building.
By precisely managing the style of air spaces at the microscale, it changes standard concrete right into a multifunctional, lasting, and high-performance material.
As innovation advances, foam generators will continue to drive advancement in building science, facilities resilience, and environmental stewardship.
