1. Chemical and Structural Fundamentals of Boron Carbide
1.1 Crystallography and Stoichiometric Irregularity

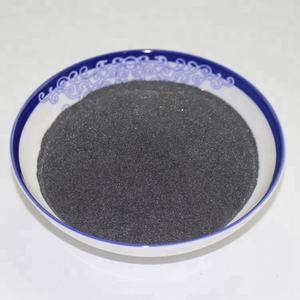

(Boron Carbide Podwer)
Boron carbide (B FOUR C) is a non-metallic ceramic compound renowned for its exceptional hardness, thermal stability, and neutron absorption ability, positioning it among the hardest well-known products– surpassed just by cubic boron nitride and diamond.
Its crystal framework is based upon a rhombohedral latticework composed of 12-atom icosahedra (mainly B ₁₂ or B ₁₁ C) interconnected by linear C-B-C or C-B-B chains, developing a three-dimensional covalent network that imparts extraordinary mechanical toughness.
Unlike lots of porcelains with taken care of stoichiometry, boron carbide displays a wide variety of compositional flexibility, commonly varying from B FOUR C to B ₁₀. THREE C, due to the substitution of carbon atoms within the icosahedra and architectural chains.
This irregularity influences key properties such as hardness, electrical conductivity, and thermal neutron capture cross-section, allowing for building tuning based upon synthesis conditions and intended application.
The presence of inherent flaws and condition in the atomic plan likewise contributes to its unique mechanical behavior, including a phenomenon called “amorphization under stress” at high pressures, which can restrict performance in extreme impact circumstances.
1.2 Synthesis and Powder Morphology Control
Boron carbide powder is mainly created through high-temperature carbothermal reduction of boron oxide (B TWO O ₃) with carbon resources such as petroleum coke or graphite in electric arc furnaces at temperature levels between 1800 ° C and 2300 ° C.
The reaction continues as: B ₂ O ₃ + 7C → 2B ₄ C + 6CO, generating crude crystalline powder that requires subsequent milling and filtration to accomplish penalty, submicron or nanoscale fragments ideal for advanced applications.
Alternate methods such as laser-assisted chemical vapor deposition (CVD), sol-gel processing, and mechanochemical synthesis deal paths to higher pureness and regulated fragment size circulation, though they are often restricted by scalability and cost.
Powder characteristics– including bit dimension, form, pile state, and surface chemistry– are vital parameters that affect sinterability, packing density, and final component efficiency.
For example, nanoscale boron carbide powders show improved sintering kinetics as a result of high surface energy, allowing densification at reduced temperatures, yet are vulnerable to oxidation and need safety ambiences during handling and processing.
Surface functionalization and finish with carbon or silicon-based layers are progressively used to improve dispersibility and hinder grain development throughout consolidation.
( Boron Carbide Podwer)
2. Mechanical Residences and Ballistic Efficiency Mechanisms
2.1 Firmness, Fracture Toughness, and Put On Resistance
Boron carbide powder is the forerunner to among the most effective light-weight armor materials available, owing to its Vickers firmness of approximately 30– 35 GPa, which allows it to deteriorate and blunt inbound projectiles such as bullets and shrapnel.
When sintered into dense ceramic floor tiles or integrated right into composite armor systems, boron carbide exceeds steel and alumina on a weight-for-weight basis, making it perfect for personnel protection, car shield, and aerospace shielding.
However, despite its high solidity, boron carbide has relatively reduced fracture strength (2.5– 3.5 MPa · m 1ST / TWO), rendering it susceptible to breaking under localized effect or repeated loading.
This brittleness is exacerbated at high stress prices, where vibrant failing mechanisms such as shear banding and stress-induced amorphization can bring about tragic loss of structural stability.
Continuous study focuses on microstructural engineering– such as introducing additional phases (e.g., silicon carbide or carbon nanotubes), producing functionally graded composites, or designing ordered designs– to minimize these restrictions.
2.2 Ballistic Energy Dissipation and Multi-Hit Ability
In personal and automotive armor systems, boron carbide tiles are usually backed by fiber-reinforced polymer compounds (e.g., Kevlar or UHMWPE) that soak up residual kinetic power and have fragmentation.
Upon effect, the ceramic layer cracks in a regulated manner, dissipating energy with mechanisms consisting of bit fragmentation, intergranular breaking, and phase transformation.
The great grain structure stemmed from high-purity, nanoscale boron carbide powder improves these energy absorption processes by raising the density of grain borders that restrain split proliferation.
Current advancements in powder handling have actually resulted in the advancement of boron carbide-based ceramic-metal composites (cermets) and nano-laminated frameworks that improve multi-hit resistance– a vital demand for military and law enforcement applications.
These crafted products maintain protective performance also after preliminary effect, attending to an essential limitation of monolithic ceramic armor.
3. Neutron Absorption and Nuclear Design Applications
3.1 Communication with Thermal and Quick Neutrons
Beyond mechanical applications, boron carbide powder plays a vital duty in nuclear modern technology due to the high neutron absorption cross-section of the ¹⁰ B isotope (3837 barns for thermal neutrons).
When integrated right into control rods, securing materials, or neutron detectors, boron carbide successfully regulates fission responses by recording neutrons and undertaking the ¹⁰ B( n, α) ⁷ Li nuclear reaction, producing alpha bits and lithium ions that are quickly consisted of.
This building makes it important in pressurized water activators (PWRs), boiling water activators (BWRs), and research reactors, where accurate neutron flux control is necessary for secure operation.
The powder is commonly produced into pellets, layers, or distributed within metal or ceramic matrices to develop composite absorbers with customized thermal and mechanical buildings.
3.2 Security Under Irradiation and Long-Term Efficiency
A critical benefit of boron carbide in nuclear settings is its high thermal security and radiation resistance approximately temperatures exceeding 1000 ° C.
Nonetheless, long term neutron irradiation can bring about helium gas accumulation from the (n, α) reaction, triggering swelling, microcracking, and degradation of mechanical stability– a phenomenon known as “helium embrittlement.”
To reduce this, scientists are creating doped boron carbide formulations (e.g., with silicon or titanium) and composite designs that suit gas launch and maintain dimensional security over extended life span.
Additionally, isotopic enrichment of ¹⁰ B improves neutron capture efficiency while reducing the overall product quantity required, improving activator layout versatility.
4. Arising and Advanced Technological Integrations
4.1 Additive Manufacturing and Functionally Graded Components
Recent progression in ceramic additive manufacturing has allowed the 3D printing of complicated boron carbide components utilizing techniques such as binder jetting and stereolithography.
In these processes, fine boron carbide powder is selectively bound layer by layer, followed by debinding and high-temperature sintering to achieve near-full density.
This capability enables the fabrication of personalized neutron protecting geometries, impact-resistant lattice frameworks, and multi-material systems where boron carbide is incorporated with steels or polymers in functionally rated designs.
Such designs optimize efficiency by integrating solidity, strength, and weight performance in a solitary component, opening up new frontiers in defense, aerospace, and nuclear design.
4.2 High-Temperature and Wear-Resistant Commercial Applications
Beyond defense and nuclear industries, boron carbide powder is utilized in abrasive waterjet reducing nozzles, sandblasting linings, and wear-resistant finishings because of its extreme hardness and chemical inertness.
It outshines tungsten carbide and alumina in erosive environments, particularly when exposed to silica sand or various other tough particulates.
In metallurgy, it serves as a wear-resistant liner for receptacles, chutes, and pumps handling unpleasant slurries.
Its low density (~ 2.52 g/cm TWO) additional improves its appeal in mobile and weight-sensitive industrial tools.
As powder quality improves and handling modern technologies advancement, boron carbide is poised to increase right into next-generation applications consisting of thermoelectric materials, semiconductor neutron detectors, and space-based radiation protecting.
Finally, boron carbide powder stands for a foundation product in extreme-environment engineering, combining ultra-high firmness, neutron absorption, and thermal durability in a single, flexible ceramic system.
Its duty in safeguarding lives, enabling nuclear energy, and advancing industrial performance emphasizes its critical relevance in modern technology.
With continued technology in powder synthesis, microstructural style, and producing combination, boron carbide will remain at the center of advanced materials development for decades ahead.
